32 Series Bolted Switchblade Connector Lever Handles

32 Series Bolted Switchblade Connector Lever Handles

Ürünlerimizin ölçülendirme ve E-Katalog sayfası, ürün malzeme içerikleri, kalite ve analiz dokümanları, sertifikalar, montaj videoları ve kategori tanıtımları hakkında kapsamlı bilgilere kolayca ulaşabilirsiniz.

Katalog Kodu: 3.2
Ürün Talebi
Canlı Destek
Ürün Hammadde Sertifikası
Teknik Detay
Ürün Kalite ve Analiz Belgeleri
Teknik Çizim
Montaj Videosu
Kategori Tanıtımı
3D Modelleme
Renk ve Materyal Seçenekleri (V)
3.2.A.V1 PA6 GF30 RAL 9005
3.2.A.V2 PA6 GF30 RAL 2003
3.2.A.V3 PA6 GF30 RAL 9005
3.2.A.V4 PA6 GF30 RAL 2003
3.2.B.V1 PPC RAL 9005
3.2.B.V2 PPC RAL 2003
3.2.B.V3 PPC RAL 9005
3.2.B.V4 PPC RAL 2003
3.2.B.V5 PA6 GF30 RAL 9005
3.2.B.V6 PA6 GF30 RAL 2003
3.2.B.V7 PA6 GF30 RAL 9005
3.2.B.V8 PA6 GF30 RAL 2003

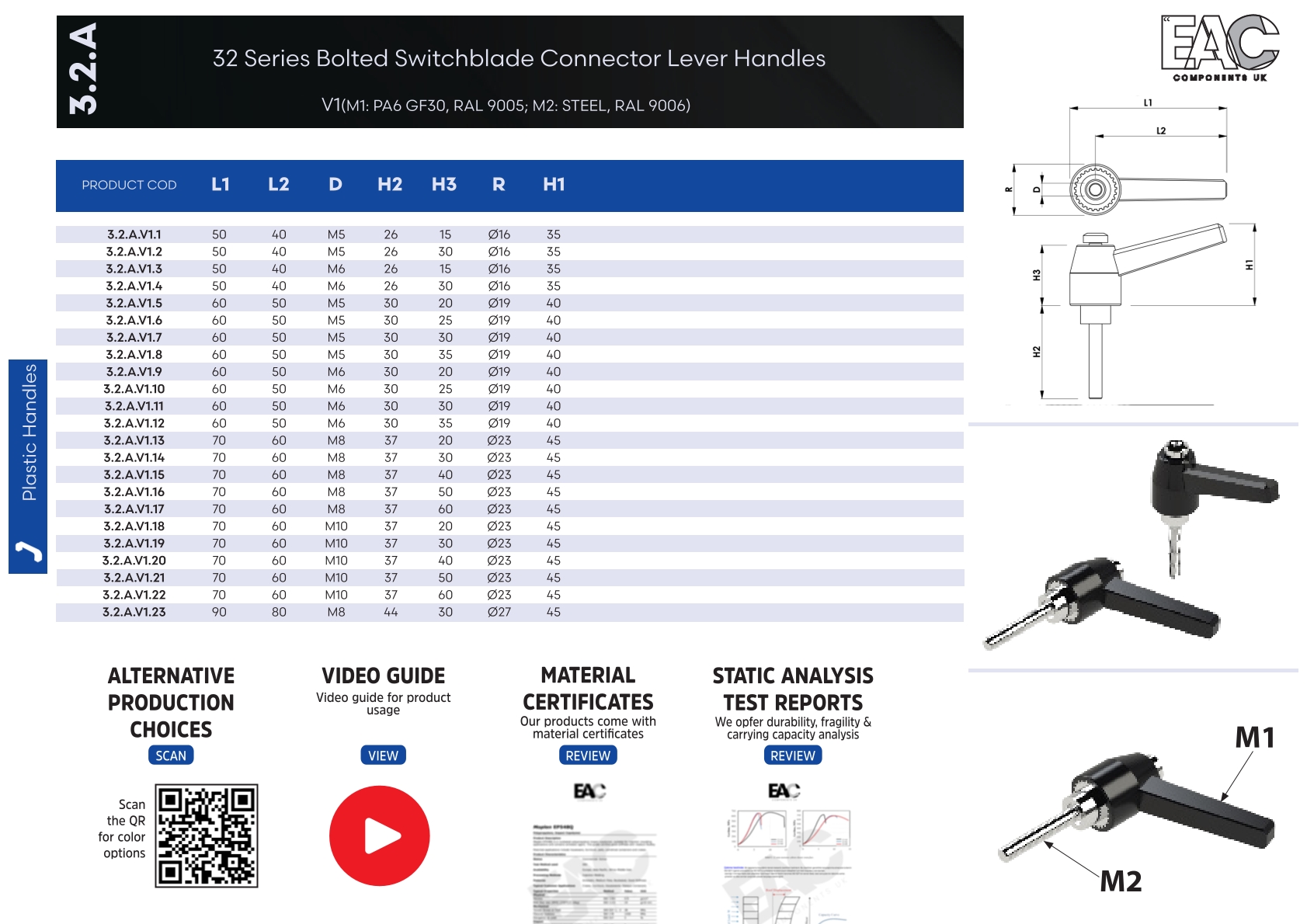

3.2.A.V1 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M5 50 35 26 3.2.A.V1.1
M5 50 35 26 3.2.A.V1.2
M6 50 35 26 3.2.A.V1.3
M6 50 35 26 3.2.A.V1.4
M5 60 40 30 3.2.A.V1.5
M5 60 40 30 3.2.A.V1.6
M5 60 40 30 3.2.A.V1.7
M5 60 40 30 3.2.A.V1.8
M6 60 40 30 3.2.A.V1.9
M6 60 40 30 3.2.A.V1.10
M6 60 40 30 3.2.A.V1.11
M6 60 40 30 3.2.A.V1.12
M8 70 45 37 3.2.A.V1.13
M8 70 45 37 3.2.A.V1.14
M8 70 45 37 3.2.A.V1.15
M8 70 45 37 3.2.A.V1.16
M8 70 45 37 3.2.A.V1.17
M10 70 45 37 3.2.A.V1.18
M10 70 45 37 3.2.A.V1.19
M10 70 45 37 3.2.A.V1.20
M10 70 45 37 3.2.A.V1.21
M10 70 45 37 3.2.A.V1.22
M8 90 45 44 3.2.A.V1.23
M8 90 55 44 3.2.A.V1.24
M8 90 55 44 3.2.A.V1.25
M8 90 55 44 3.2.A.V1.26
M10 90 55 44 3.2.A.V1.27
M10 90 55 44 3.2.A.V1.28
M10 90 55 44 3.2.A.V1.29
M10 90 55 44 3.2.A.V1.30
M12 90 55 44 3.2.A.V1.31
M12 90 55 44 3.2.A.V1.32
M12 90 55 44 3.2.A.V1.33
M12 90 55 44 3.2.A.V1.34
M12 120 67 50 3.2.A.V1.35
M14 120 67 50 3.2.A.V1.36
M16 120 67 50 3.2.A.V1.37
M16 120 67 50 3.2.A.V1.38
3.2.A.V2 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.A.V2.9
M5 50 35 26 3.2.A.V2.1
M8 70 45 37 3.2.A.V2.17
M8 70 45 37 3.2.A.V2.16
M8 70 45 37 3.2.A.V2.15
M8 70 45 37 3.2.A.V2.14
M8 70 45 37 3.2.A.V2.13
M6 60 40 30 3.2.A.V2.12
M10 70 45 37 3.2.A.V2.19
M6 60 40 30 3.2.A.V2.10
M10 70 45 37 3.2.A.V2.20
M5 60 40 30 3.2.A.V2.8
M5 60 40 30 3.2.A.V2.7
M5 60 40 30 3.2.A.V2.6
M5 60 40 30 3.2.A.V2.5
M6 50 35 26 3.2.A.V2.4
M6 50 35 26 3.2.A.V2.3
M5 50 35 26 3.2.A.V2.2
M6 60 40 30 3.2.A.V2.11
M10 90 55 44 3.2.A.V2.28
M16 120 67 50 3.2.A.V2.37
M14 120 67 50 3.2.A.V2.36
M12 120 67 50 3.2.A.V2.35
M12 90 55 44 3.2.A.V2.34
M12 90 55 44 3.2.A.V2.33
M12 90 55 44 3.2.A.V2.32
M12 90 55 44 3.2.A.V2.31
M10 70 45 37 3.2.A.V2.18
M10 90 55 44 3.2.A.V2.29
M16 120 67 50 3.2.A.V2.38
M10 90 55 44 3.2.A.V2.27
M8 90 55 44 3.2.A.V2.26
M8 90 55 44 3.2.A.V2.25
M8 90 55 44 3.2.A.V2.24
M8 90 45 44 3.2.A.V2.23
M10 70 45 37 3.2.A.V2.22
M10 70 45 37 3.2.A.V2.21
M10 90 55 44 3.2.A.V2.30
3.2.A.V3 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.A.V3.9
M5 50 35 26 3.2.A.V3.1
M8 70 45 37 3.2.A.V3.17
M8 70 45 37 3.2.A.V3.16
M8 70 45 37 3.2.A.V3.15
M8 70 45 37 3.2.A.V3.14
M8 70 45 37 3.2.A.V3.13
M6 60 40 30 3.2.A.V3.12
M10 70 45 37 3.2.A.V3.19
M6 60 40 30 3.2.A.V3.10
M10 70 45 37 3.2.A.V3.20
M5 60 40 30 3.2.A.V3.8
M5 60 40 30 3.2.A.V3.7
M5 60 40 30 3.2.A.V3.6
M5 60 40 30 3.2.A.V3.5
M6 50 35 26 3.2.A.V3.4
M6 50 35 26 3.2.A.V3.3
M5 50 35 26 3.2.A.V3.2
M6 60 40 30 3.2.A.V3.11
M10 90 55 44 3.2.A.V3.28
M16 120 67 50 3.2.A.V3.37
M14 120 67 50 3.2.A.V3.36
M12 120 67 50 3.2.A.V3.35
M12 90 55 44 3.2.A.V3.34
M12 90 55 44 3.2.A.V3.33
M12 90 55 44 3.2.A.V3.32
M12 90 55 44 3.2.A.V3.31
M10 70 45 37 3.2.A.V3.18
M10 90 55 44 3.2.A.V3.29
M16 120 67 50 3.2.A.V3.38
M10 90 55 44 3.2.A.V3.27
M8 90 55 44 3.2.A.V3.26
M8 90 55 44 3.2.A.V3.25
M8 90 55 44 3.2.A.V3.24
M8 90 45 44 3.2.A.V3.23
M10 70 45 37 3.2.A.V3.22
M10 70 45 37 3.2.A.V3.21
M10 90 55 44 3.2.A.V3.30

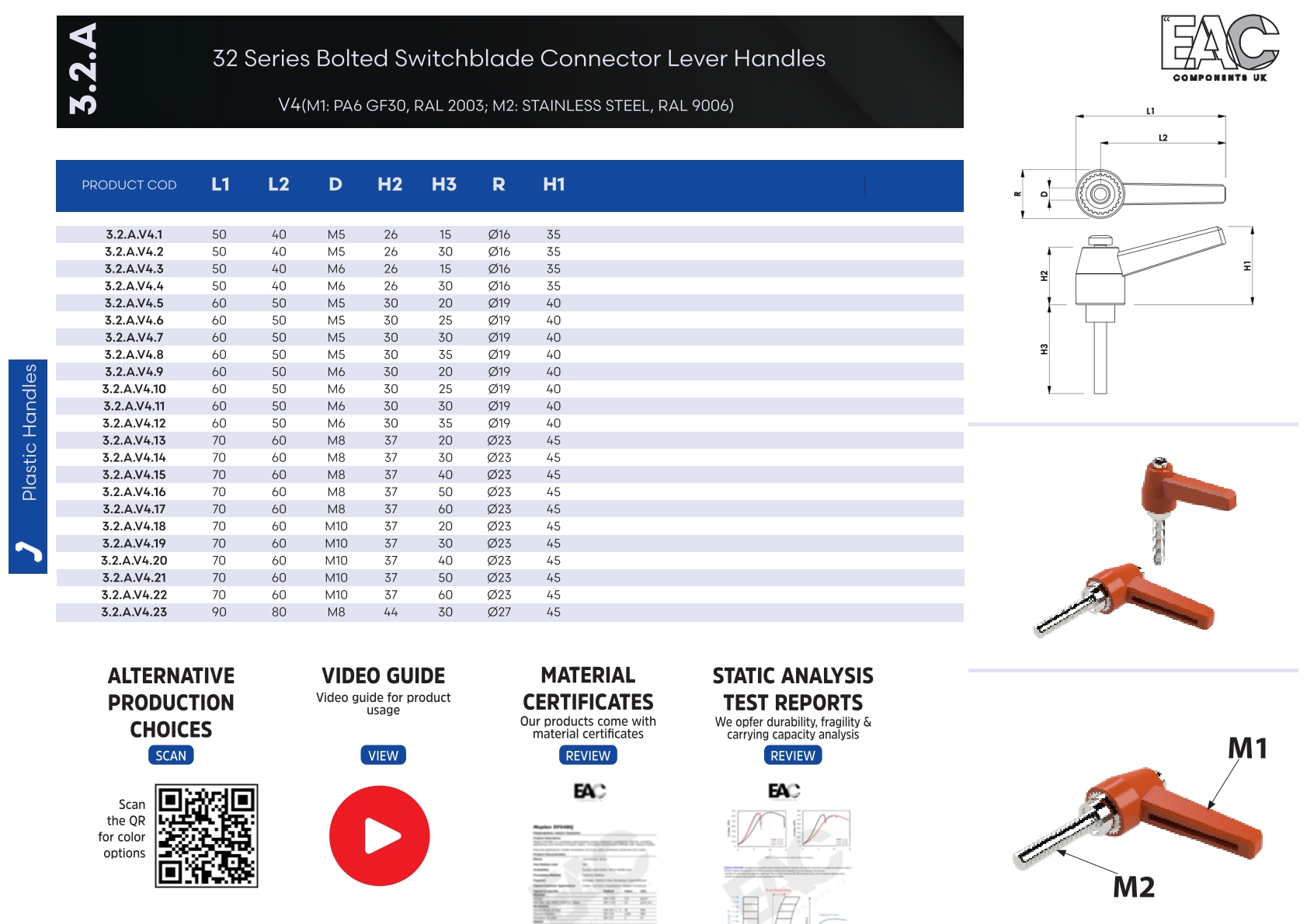

3.2.A.V4 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.A.V4.9
M5 50 35 26 3.2.A.V4.1
M8 70 45 37 3.2.A.V4.17
M8 70 45 37 3.2.A.V4.16
M8 70 45 37 3.2.A.V4.15
M8 70 45 37 3.2.A.V4.14
M8 70 45 37 3.2.A.V4.13
M6 60 40 30 3.2.A.V4.12
M10 70 45 37 3.2.A.V4.19
M6 60 40 30 3.2.A.V4.10
M10 70 45 37 3.2.A.V4.20
M5 60 40 30 3.2.A.V4.8
M5 60 40 30 3.2.A.V4.7
M5 60 40 30 3.2.A.V4.6
M5 60 40 30 3.2.A.V4.5
M6 50 35 26 3.2.A.V4.4
M6 50 35 26 3.2.A.V4.3
M5 50 35 26 3.2.A.V4.2
M6 60 40 30 3.2.A.V4.11
M10 90 55 44 3.2.A.V4.28
M16 120 67 50 3.2.A.V4.37
M14 120 67 50 3.2.A.V4.36
M12 120 67 50 3.2.A.V4.35
M12 90 55 44 3.2.A.V4.34
M12 90 55 44 3.2.A.V4.33
M12 90 55 44 3.2.A.V4.32
M12 90 55 44 3.2.A.V4.31
M10 70 45 37 3.2.A.V4.18
M10 90 55 44 3.2.A.V4.29
M16 120 67 50 3.2.A.V4.38
M10 90 55 44 3.2.A.V4.27
M8 90 55 44 3.2.A.V4.26
M8 90 55 44 3.2.A.V4.25
M8 90 55 44 3.2.A.V4.24
M8 90 45 44 3.2.A.V4.23
M10 70 45 37 3.2.A.V4.22
M10 70 45 37 3.2.A.V4.21
M10 90 55 44 3.2.A.V4.30

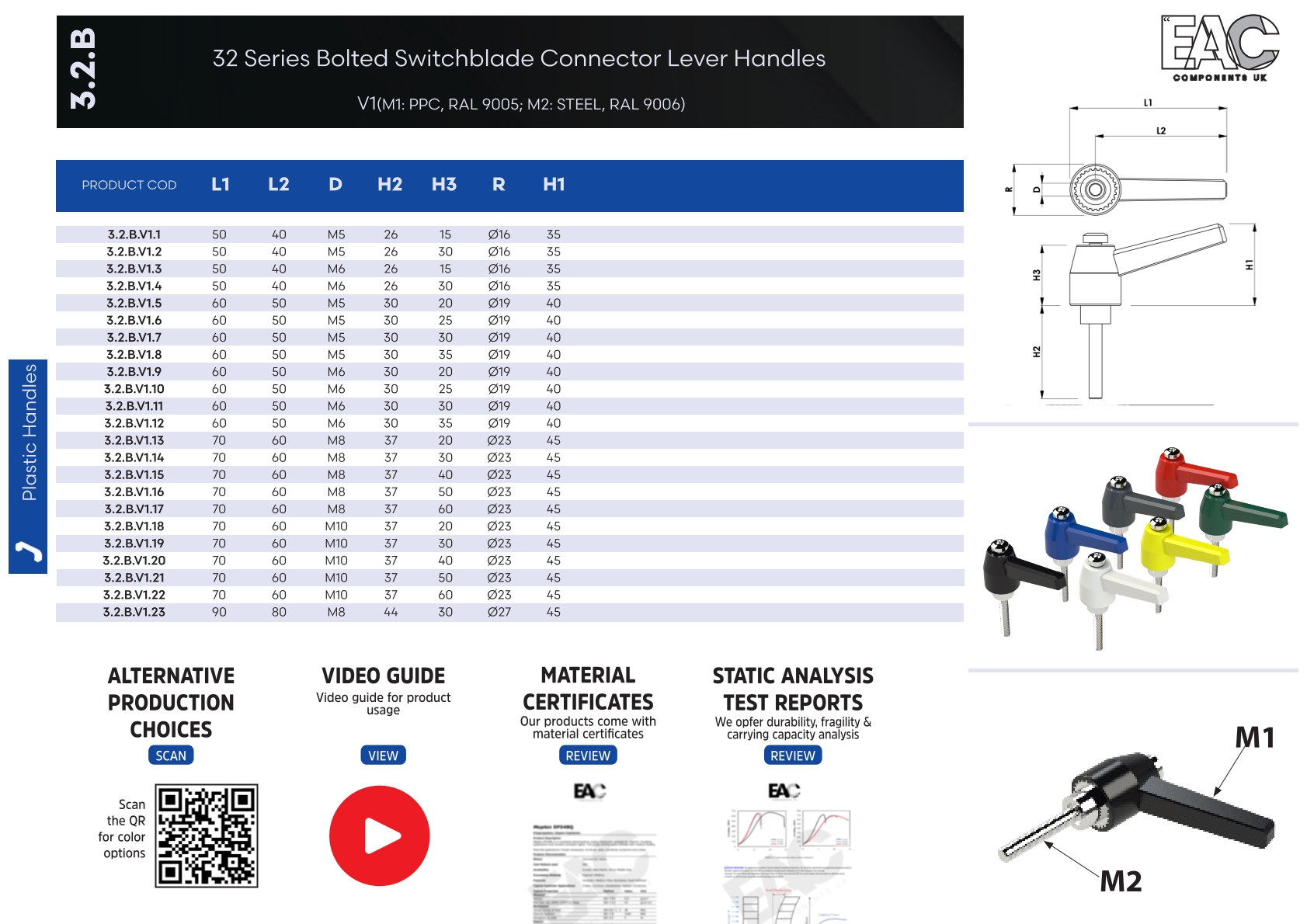

3.2.B.V1 - PPC - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M5 50 35 26 3.2.B.V1.1
M5 50 35 26 3.2.B.V1.2
M6 50 35 26 3.2.B.V1.3
M6 50 35 26 3.2.B.V1.4
M5 60 40 30 3.2.B.V1.5
M5 60 40 30 3.2.B.V1.6
M5 60 40 30 3.2.B.V1.7
M5 60 40 30 3.2.B.V1.8
M6 60 40 30 3.2.B.V1.9
M6 60 40 30 3.2.B.V1.10
M6 60 40 30 3.2.B.V1.11
M6 60 40 30 3.2.B.V1.12
M8 70 45 37 3.2.B.V1.13
M8 70 45 37 3.2.B.V1.14
M8 70 45 37 3.2.B.V1.15
M8 70 45 37 3.2.B.V1.16
M8 70 45 37 3.2.B.V1.17
M10 70 45 37 3.2.B.V1.18
M10 70 45 37 3.2.B.V1.19
M10 70 45 37 3.2.B.V1.20
M10 70 45 37 3.2.B.V1.21
M10 70 45 37 3.2.B.V1.22
M8 90 45 44 3.2.B.V1.23
M8 90 55 44 3.2.B.V1.24
M8 90 55 44 3.2.B.V1.25
M8 90 55 44 3.2.B.V1.26
M10 90 55 44 3.2.B.V1.27
M10 90 55 44 3.2.B.V1.28
M10 90 55 44 3.2.B.V1.29
M10 90 55 44 3.2.B.V1.30
M12 90 55 44 3.2.B.V1.31
M12 90 55 44 3.2.B.V1.32
M12 90 55 44 3.2.B.V1.33
M12 90 55 44 3.2.B.V1.34
M12 120 67 50 3.2.B.V1.35
M14 120 67 50 3.2.B.V1.36
M16 120 67 50 3.2.B.V1.37
M16 120 67 50 3.2.B.V1.38
3.2.B.V2 - PPC - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V2.9
M5 50 35 26 3.2.B.V2.1
M8 70 45 37 3.2.B.V2.17
M8 70 45 37 3.2.B.V2.16
M8 70 45 37 3.2.B.V2.15
M8 70 45 37 3.2.B.V2.14
M8 70 45 37 3.2.B.V2.13
M6 60 40 30 3.2.B.V2.12
M10 70 45 37 3.2.B.V2.19
M6 60 40 30 3.2.B.V2.10
M10 70 45 37 3.2.B.V2.20
M5 60 40 30 3.2.B.V2.8
M5 60 40 30 3.2.B.V2.7
M5 60 40 30 3.2.B.V2.6
M5 60 40 30 3.2.B.V2.5
M6 50 35 26 3.2.B.V2.4
M6 50 35 26 3.2.B.V2.3
M5 50 35 26 3.2.B.V2.2
M6 60 40 30 3.2.B.V2.11
M10 90 55 44 3.2.B.V2.28
M16 120 67 50 3.2.B.V2.37
M14 120 67 50 3.2.B.V2.36
M12 120 67 50 3.2.B.V2.35
M12 90 55 44 3.2.B.V2.34
M12 90 55 44 3.2.B.V2.33
M12 90 55 44 3.2.B.V2.32
M12 90 55 44 3.2.B.V2.31
M10 70 45 37 3.2.B.V2.18
M10 90 55 44 3.2.B.V2.29
M16 120 67 50 3.2.B.V2.38
M10 90 55 44 3.2.B.V2.27
M8 90 55 44 3.2.B.V2.26
M8 90 55 44 3.2.B.V2.25
M8 90 55 44 3.2.B.V2.24
M8 90 45 44 3.2.B.V2.23
M10 70 45 37 3.2.B.V2.22
M10 70 45 37 3.2.B.V2.21
M10 90 55 44 3.2.B.V2.30
3.2.B.V3 - PPC - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V3.9
M5 50 35 26 3.2.B.V3.1
M8 70 45 37 3.2.B.V3.17
M8 70 45 37 3.2.B.V3.16
M8 70 45 37 3.2.B.V3.15
M8 70 45 37 3.2.B.V3.14
M8 70 45 37 3.2.B.V3.13
M6 60 40 30 3.2.B.V3.12
M10 70 45 37 3.2.B.V3.19
M6 60 40 30 3.2.B.V3.10
M10 70 45 37 3.2.B.V3.20
M5 60 40 30 3.2.B.V3.8
M5 60 40 30 3.2.B.V3.7
M5 60 40 30 3.2.B.V3.6
M5 60 40 30 3.2.B.V3.5
M6 50 35 26 3.2.B.V3.4
M6 50 35 26 3.2.B.V3.3
M5 50 35 26 3.2.B.V3.2
M6 60 40 30 3.2.B.V3.11
M10 90 55 44 3.2.B.V3.28
M16 120 67 50 3.2.B.V3.37
M14 120 67 50 3.2.B.V3.36
M12 120 67 50 3.2.B.V3.35
M12 90 55 44 3.2.B.V3.34
M12 90 55 44 3.2.B.V3.33
M12 90 55 44 3.2.B.V3.32
M12 90 55 44 3.2.B.V3.31
M10 70 45 37 3.2.B.V3.18
M10 90 55 44 3.2.B.V3.29
M16 120 67 50 3.2.B.V3.38
M10 90 55 44 3.2.B.V3.27
M8 90 55 44 3.2.B.V3.26
M8 90 55 44 3.2.B.V3.25
M8 90 55 44 3.2.B.V3.24
M8 90 45 44 3.2.B.V3.23
M10 70 45 37 3.2.B.V3.22
M10 70 45 37 3.2.B.V3.21
M10 90 55 44 3.2.B.V3.30

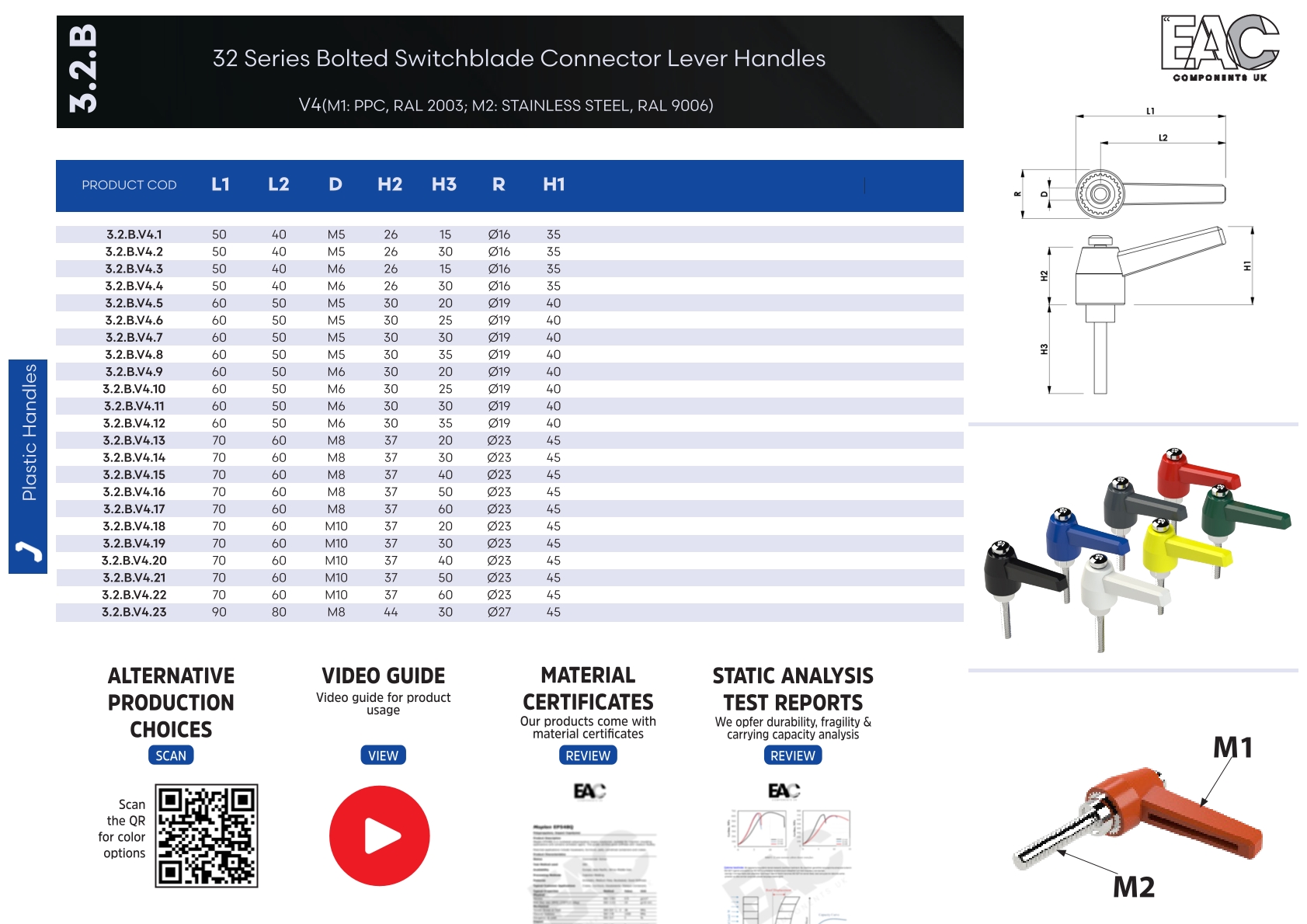

3.2.B.V4 - PPC - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V4.9
M5 50 35 26 3.2.B.V4.1
M8 70 45 37 3.2.B.V4.17
M8 70 45 37 3.2.B.V4.16
M8 70 45 37 3.2.B.V4.15
M8 70 45 37 3.2.B.V4.14
M8 70 45 37 3.2.B.V4.13
M6 60 40 30 3.2.B.V4.12
M10 70 45 37 3.2.B.V4.19
M6 60 40 30 3.2.B.V4.10
M10 70 45 37 3.2.B.V4.20
M5 60 40 30 3.2.B.V4.8
M5 60 40 30 3.2.B.V4.7
M5 60 40 30 3.2.B.V4.6
M5 60 40 30 3.2.B.V4.5
M6 50 35 26 3.2.B.V4.4
M6 50 35 26 3.2.B.V4.3
M5 50 35 26 3.2.B.V4.2
M6 60 40 30 3.2.B.V4.11
M10 90 55 44 3.2.B.V4.28
M16 120 67 50 3.2.B.V4.37
M14 120 67 50 3.2.B.V4.36
M12 120 67 50 3.2.B.V4.35
M12 90 55 44 3.2.B.V4.34
M12 90 55 44 3.2.B.V4.33
M12 90 55 44 3.2.B.V4.32
M12 90 55 44 3.2.B.V4.31
M10 70 45 37 3.2.B.V4.18
M10 90 55 44 3.2.B.V4.29
M16 120 67 50 3.2.B.V4.38
M10 90 55 44 3.2.B.V4.27
M8 90 55 44 3.2.B.V4.26
M8 90 55 44 3.2.B.V4.25
M8 90 55 44 3.2.B.V4.24
M8 90 45 44 3.2.B.V4.23
M10 70 45 37 3.2.B.V4.22
M10 70 45 37 3.2.B.V4.21
M10 90 55 44 3.2.B.V4.30

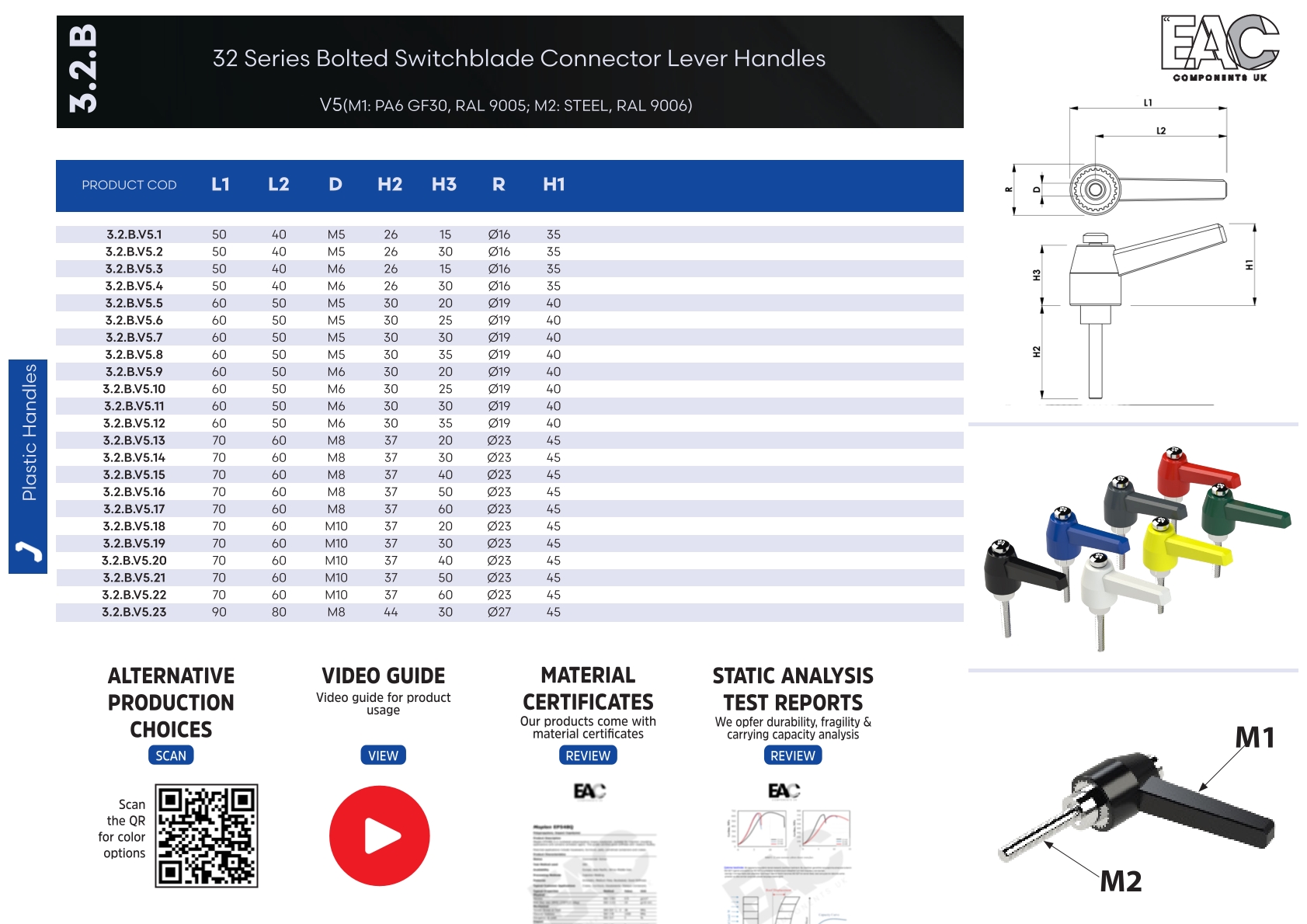

3.2.B.V5 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V5.9
M5 50 35 26 3.2.B.V5.1
M8 70 45 37 3.2.B.V5.17
M8 70 45 37 3.2.B.V5.16
M8 70 45 37 3.2.B.V5.15
M8 70 45 37 3.2.B.V5.14
M8 70 45 37 3.2.B.V5.13
M6 60 40 30 3.2.B.V5.12
M10 70 45 37 3.2.B.V5.19
M6 60 40 30 3.2.B.V5.10
M10 70 45 37 3.2.B.V5.20
M5 60 40 30 3.2.B.V5.8
M5 60 40 30 3.2.B.V5.7
M5 60 40 30 3.2.B.V5.6
M5 60 40 30 3.2.B.V5.5
M6 50 35 26 3.2.B.V5.4
M6 50 35 26 3.2.B.V5.3
M5 50 35 26 3.2.B.V5.2
M6 60 40 30 3.2.B.V5.11
M10 90 55 44 3.2.B.V5.28
M16 120 67 50 3.2.B.V5.37
M14 120 67 50 3.2.B.V5.36
M12 120 67 50 3.2.B.V5.35
M12 90 55 44 3.2.B.V5.34
M12 90 55 44 3.2.B.V5.33
M12 90 55 44 3.2.B.V5.32
M12 90 55 44 3.2.B.V5.31
M10 70 45 37 3.2.B.V5.18
M10 90 55 44 3.2.B.V5.29
M16 120 67 50 3.2.B.V5.38
M10 90 55 44 3.2.B.V5.27
M8 90 55 44 3.2.B.V5.26
M8 90 55 44 3.2.B.V5.25
M8 90 55 44 3.2.B.V5.24
M8 90 45 44 3.2.B.V5.23
M10 70 45 37 3.2.B.V5.22
M10 70 45 37 3.2.B.V5.21
M10 90 55 44 3.2.B.V5.30
3.2.B.V6 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V6.9
M5 50 35 26 3.2.B.V6.1
M8 70 45 37 3.2.B.V6.17
M8 70 45 37 3.2.B.V6.16
M8 70 45 37 3.2.B.V6.15
M8 70 45 37 3.2.B.V6.14
M8 70 45 37 3.2.B.V6.13
M6 60 40 30 3.2.B.V6.12
M10 70 45 37 3.2.B.V6.19
M6 60 40 30 3.2.B.V6.10
M10 70 45 37 3.2.B.V6.20
M5 60 40 30 3.2.B.V6.8
M5 60 40 30 3.2.B.V6.7
M5 60 40 30 3.2.B.V6.6
M5 60 40 30 3.2.B.V6.5
M6 50 35 26 3.2.B.V6.4
M6 50 35 26 3.2.B.V6.3
M5 50 35 26 3.2.B.V6.2
M6 60 40 30 3.2.B.V6.11
M10 90 55 44 3.2.B.V6.28
M16 120 67 50 3.2.B.V6.37
M14 120 67 50 3.2.B.V6.36
M12 120 67 50 3.2.B.V6.35
M12 90 55 44 3.2.B.V6.34
M12 90 55 44 3.2.B.V6.33
M12 90 55 44 3.2.B.V6.32
M12 90 55 44 3.2.B.V6.31
M10 70 45 37 3.2.B.V6.18
M10 90 55 44 3.2.B.V6.29
M16 120 67 50 3.2.B.V6.38
M10 90 55 44 3.2.B.V6.27
M8 90 55 44 3.2.B.V6.26
M8 90 55 44 3.2.B.V6.25
M8 90 55 44 3.2.B.V6.24
M8 90 45 44 3.2.B.V6.23
M10 70 45 37 3.2.B.V6.22
M10 70 45 37 3.2.B.V6.21
M10 90 55 44 3.2.B.V6.30
3.2.B.V7 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V7.9
M5 50 35 26 3.2.B.V7.1
M8 70 45 37 3.2.B.V7.17
M8 70 45 37 3.2.B.V7.16
M8 70 45 37 3.2.B.V7.15
M8 70 45 37 3.2.B.V7.14
M8 70 45 37 3.2.B.V7.13
M6 60 40 30 3.2.B.V7.12
M10 70 45 37 3.2.B.V7.19
M6 60 40 30 3.2.B.V7.10
M10 70 45 37 3.2.B.V7.20
M5 60 40 30 3.2.B.V7.8
M5 60 40 30 3.2.B.V7.7
M5 60 40 30 3.2.B.V7.6
M5 60 40 30 3.2.B.V7.5
M6 50 35 26 3.2.B.V7.4
M6 50 35 26 3.2.B.V7.3
M5 50 35 26 3.2.B.V7.2
M6 60 40 30 3.2.B.V7.11
M10 90 55 44 3.2.B.V7.28
M16 120 67 50 3.2.B.V7.37
M14 120 67 50 3.2.B.V7.36
M12 120 67 50 3.2.B.V7.35
M12 90 55 44 3.2.B.V7.34
M12 90 55 44 3.2.B.V7.33
M12 90 55 44 3.2.B.V7.32
M12 90 55 44 3.2.B.V7.31
M10 70 45 37 3.2.B.V7.18
M10 90 55 44 3.2.B.V7.29
M16 120 67 50 3.2.B.V7.38
M10 90 55 44 3.2.B.V7.27
M8 90 55 44 3.2.B.V7.26
M8 90 55 44 3.2.B.V7.25
M8 90 55 44 3.2.B.V7.24
M8 90 45 44 3.2.B.V7.23
M10 70 45 37 3.2.B.V7.22
M10 70 45 37 3.2.B.V7.21
M10 90 55 44 3.2.B.V7.30
3.2.B.V8 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V8.9
M5 50 35 26 3.2.B.V8.1
M8 70 45 37 3.2.B.V8.17
M8 70 45 37 3.2.B.V8.16
M8 70 45 37 3.2.B.V8.15
M8 70 45 37 3.2.B.V8.14
M8 70 45 37 3.2.B.V8.13
M6 60 40 30 3.2.B.V8.12
M10 70 45 37 3.2.B.V8.19
M6 60 40 30 3.2.B.V8.10
M10 70 45 37 3.2.B.V8.20
M5 60 40 30 3.2.B.V8.8
M5 60 40 30 3.2.B.V8.7
M5 60 40 30 3.2.B.V8.6
M5 60 40 30 3.2.B.V8.5
M6 50 35 26 3.2.B.V8.4
M6 50 35 26 3.2.B.V8.3
M5 50 35 26 3.2.B.V8.2
M6 60 40 30 3.2.B.V8.11
M10 90 55 44 3.2.B.V8.28
M16 120 67 50 3.2.B.V8.37
M14 120 67 50 3.2.B.V8.36
M12 120 67 50 3.2.B.V8.35
M12 90 55 44 3.2.B.V8.34
M12 90 55 44 3.2.B.V8.33
M12 90 55 44 3.2.B.V8.32
M12 90 55 44 3.2.B.V8.31
M10 70 45 37 3.2.B.V8.18
M10 90 55 44 3.2.B.V8.29
M16 120 67 50 3.2.B.V8.38
M10 90 55 44 3.2.B.V8.27
M8 90 55 44 3.2.B.V8.26
M8 90 55 44 3.2.B.V8.25
M8 90 55 44 3.2.B.V8.24
M8 90 45 44 3.2.B.V8.23
M10 70 45 37 3.2.B.V8.22
M10 70 45 37 3.2.B.V8.21
M10 90 55 44 3.2.B.V8.30
Teknik Çizim
Teknik Çizim
3D Modelleme

Ürün dosyasına erişmek için aşağıda bulunan “3D Modeli İndir” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

3D Modeli İndir
Montaj Videosu

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Talep Et
Teknik Detay

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Talep Et
Ürün Hammadde Sertifikası

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Talep Et
Ürün Kalite ve Analiz Belgeleri

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Talep Et
Kategori Tanıtımı

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Talep Et
Benzer Ürünler
31 Series Bushed Switchblade Connector Lever Handles
31 Series Bushed Switchblade Connector Lever Handles
SKU: 3.1
32 Series Bolted Switchblade Connector Lever Handles
32 Series Bolted Switchblade Connector Lever Handles
SKU: 3.2
33 Series Hole Connection Demountable Knob Handles
33 Series Hole Connection Demountable Knob Handles
SKU: 3.3
34 Series Hole Connector Pull Handles
34 Series Hole Connector Pull Handles
SKU: 3.4
35 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
35 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
SKU: 3.5
36 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
36 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
SKU: 3.6
37 Series Hole Connector Pull Handles
37 Series Hole Connector Pull Handles
SKU: 3.7
38 Series Bushed Connectors Knob Handles
38 Series Bushed Connectors Knob Handles
SKU: 3.8
39 Series Bolted Connectors Knob Handles
39 Series Bolted Connectors Knob Handles
SKU: 3.9
310 Series Bolted Connectors Knob Handles
310 Series Bolted Connectors Knob Handles
SKU: 3.10
311 Series Bushed Connectors Knob Handles
311 Series Bushed Connectors Knob Handles
SKU: 3.11
312 Series Bushed Connectors Knob Handles
312 Series Bushed Connectors Knob Handles
SKU: 3.12
