975 Series Metal Bodied Rubber Base Articulated Bolt Mounted Feet

975 Series Metal Bodied Rubber Base Articulated Bolt Mounted Feet

Ürünlerimizin ölçülendirme ve E-Katalog sayfası, ürün malzeme içerikleri, kalite ve analiz dokümanları, sertifikalar, montaj videoları ve kategori tanıtımları hakkında kapsamlı bilgilere kolayca ulaşabilirsiniz.

Katalog Kodu: 9.75

Ürün Hammadde Sertifikası

Ürün Kalite ve Analiz Belgeleri

Kategori Tanıtımı

Renk ve Materyal Seçenekleri (V)

9.75.A.V1 PPC RAL 2007

9.75.A.V10 PPC RAL 1026

9.75.A.V2 PPC RAL 3020

9.75.A.V3 PPC RAL 5002

9.75.A.V4 PPC RAL 7004

9.75.A.V5 PPC RAL 1026

9.75.A.V6 PPC RAL 2007

9.75.A.V7 PPC RAL 3020

9.75.A.V8 PPC RAL 5007

9.75.A.V9 PPC RAL 7016

9.75.A.V1 - PPC - RAL 2007
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M10	50				9.75.A.V1.1
			Ø100	M10	100				9.75.A.V1.2
			Ø100	M12	50				9.75.A.V1.3
			Ø100	M12	100				9.75.A.V1.4
			Ø100	M12	150				9.75.A.V1.5
			Ø100	M16	100				9.75.A.V1.6
			Ø100	M16	150				9.75.A.V1.7
			Ø100	M20	100				9.75.A.V1.8
			Ø100	M20	150				9.75.A.V1.9

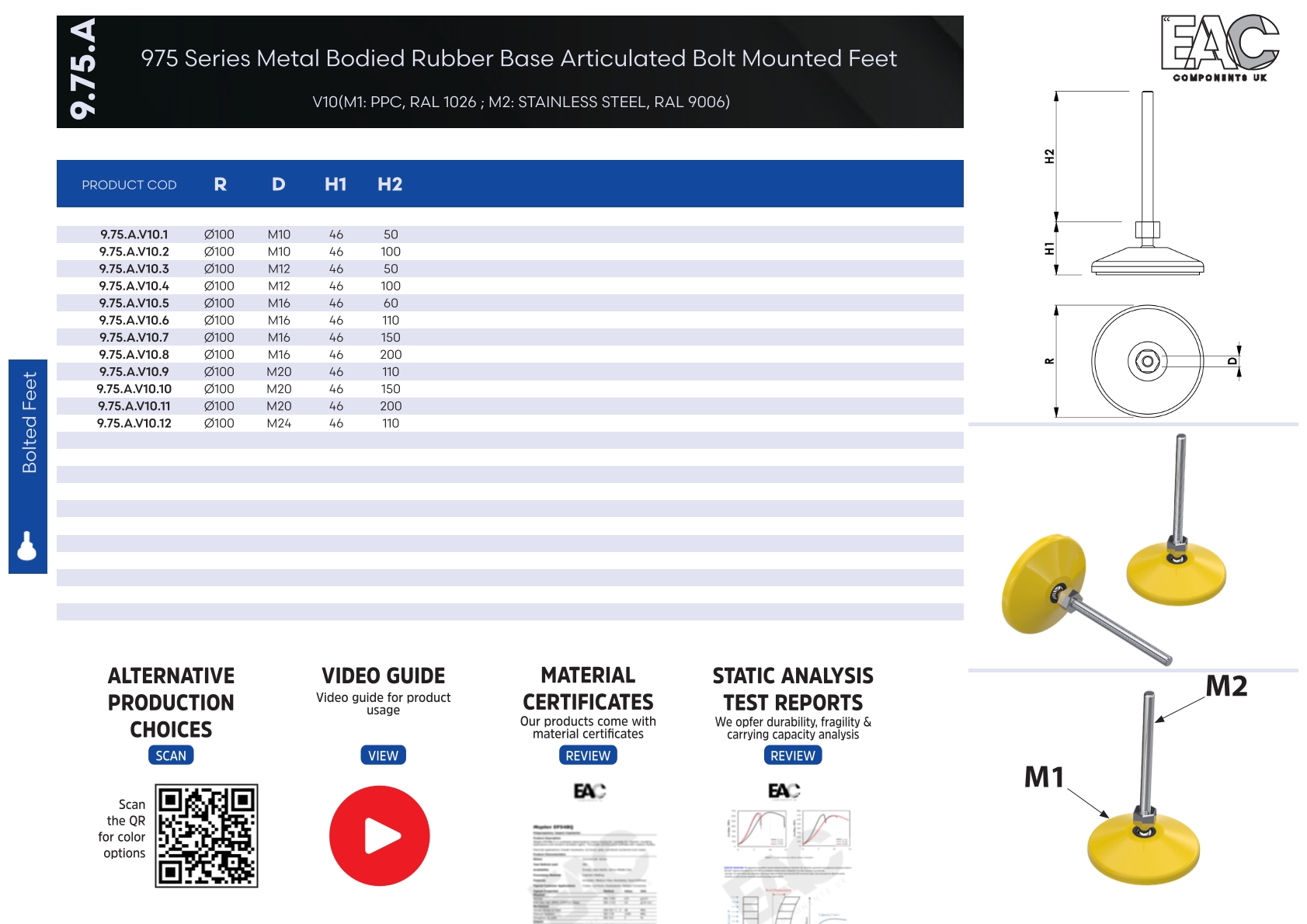

9.75.A.V10 - PPC - RAL 1026
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M24	110				9.75.A.V10.12
			Ø100	M20	200				9.75.A.V10.11
			Ø100	M20	150				9.75.A.V10.10
			Ø100	M20	110				9.75.A.V10.9
			Ø100	M16	200				9.75.A.V10.8
			Ø100	M16	150				9.75.A.V10.7
			Ø100	M16	110				9.75.A.V10.6
			Ø100	M16	60				9.75.A.V10.5
			Ø100	M12	100				9.75.A.V10.4
			Ø100	M12	50				9.75.A.V10.3
			Ø100	M10	100				9.75.A.V10.2
			Ø100	M10	50				9.75.A.V10.1

9.75.A.V2 - PPC - RAL 3020
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M20	150				9.75.A.V2.9
			Ø100	M20	100				9.75.A.V2.8
			Ø100	M16	150				9.75.A.V2.7
			Ø100	M16	100				9.75.A.V2.6
			Ø100	M12	150				9.75.A.V2.5
			Ø100	M12	100				9.75.A.V2.4
			Ø100	M12	50				9.75.A.V2.3
			Ø100	M10	100				9.75.A.V2.2
			Ø100	M10	50				9.75.A.V2.1

9.75.A.V3 - PPC - RAL 5002
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M20	150				9.75.A.V3.9
			Ø100	M20	100				9.75.A.V3.8
			Ø100	M16	150				9.75.A.V3.7
			Ø100	M16	100				9.75.A.V3.6
			Ø100	M12	150				9.75.A.V3.5
			Ø100	M12	100				9.75.A.V3.4
			Ø100	M12	50				9.75.A.V3.3
			Ø100	M10	100				9.75.A.V3.2
			Ø100	M10	50				9.75.A.V3.1

9.75.A.V4 - PPC - RAL 7004
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M20	150				9.75.A.V4.9
			Ø100	M20	100				9.75.A.V4.8
			Ø100	M16	150				9.75.A.V4.7
			Ø100	M16	100				9.75.A.V4.6
			Ø100	M12	150				9.75.A.V4.5
			Ø100	M12	100				9.75.A.V4.4
			Ø100	M12	50				9.75.A.V4.3
			Ø100	M10	100				9.75.A.V4.2
			Ø100	M10	50				9.75.A.V4.1

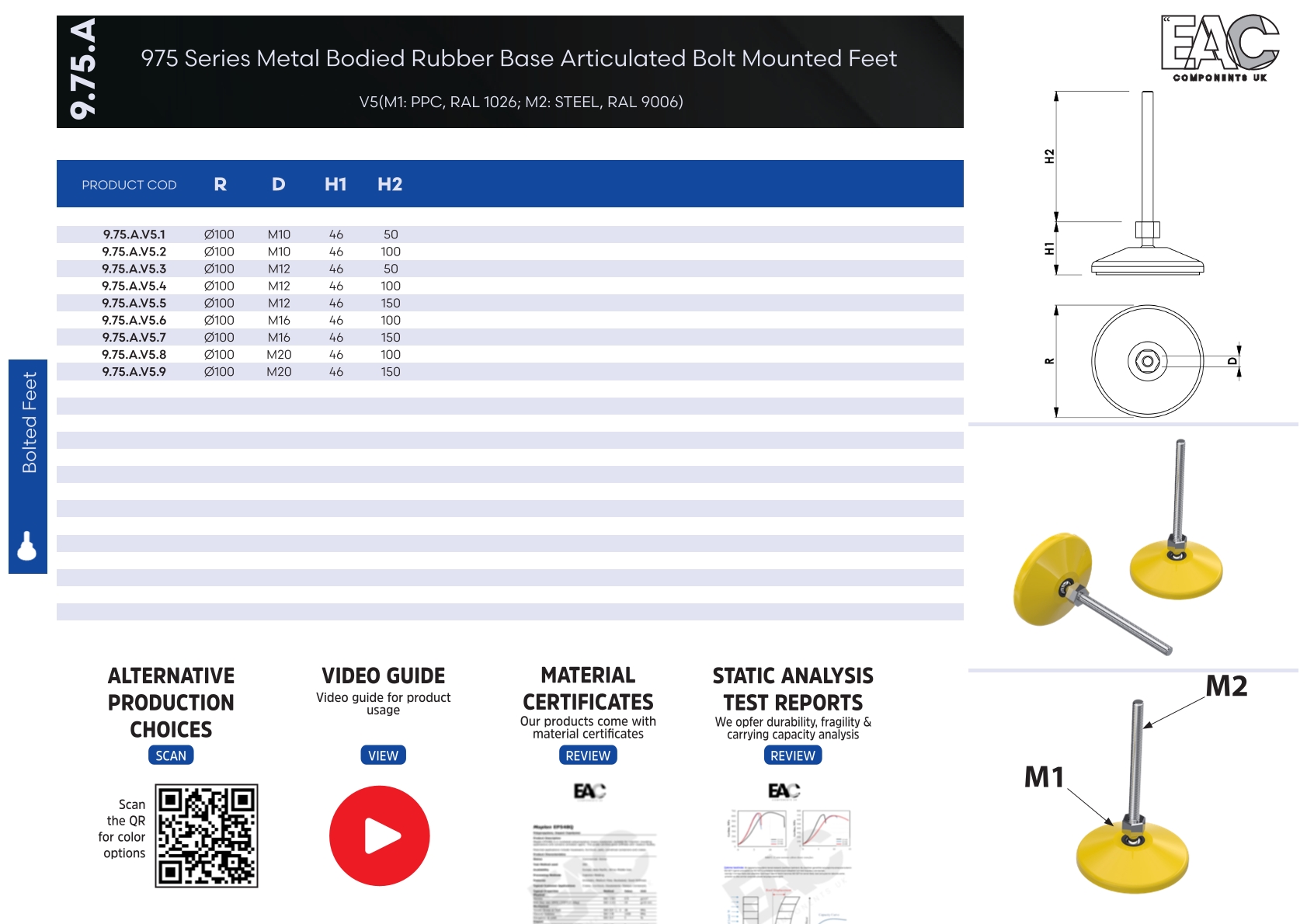

9.75.A.V5 - PPC - RAL 1026
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M20	150				9.75.A.V5.9
			Ø100	M20	100				9.75.A.V5.8
			Ø100	M16	150				9.75.A.V5.7
			Ø100	M16	100				9.75.A.V5.6
			Ø100	M12	150				9.75.A.V5.5
			Ø100	M12	100				9.75.A.V5.4
			Ø100	M12	50				9.75.A.V5.3
			Ø100	M10	100				9.75.A.V5.2
			Ø100	M10	50				9.75.A.V5.1

9.75.A.V6 - PPC - RAL 2007
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M24	110				9.75.A.V6.12
			Ø100	M20	200				9.75.A.V6.11
			Ø100	M20	150				9.75.A.V6.10
			Ø100	M20	110				9.75.A.V6.9
			Ø100	M16	200				9.75.A.V6.8
			Ø100	M16	150				9.75.A.V6.7
			Ø100	M16	110				9.75.A.V6.6
			Ø100	M16	60				9.75.A.V6.5
			Ø100	M12	100				9.75.A.V6.4
			Ø100	M12	50				9.75.A.V6.3
			Ø100	M10	100				9.75.A.V6.2
			Ø100	M10	50				9.75.A.V6.1

9.75.A.V7 - PPC - RAL 3020
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M24	110				9.75.A.V7.12
			Ø100	M20	200				9.75.A.V7.11
			Ø100	M20	150				9.75.A.V7.10
			Ø100	M20	110				9.75.A.V7.9
			Ø100	M16	200				9.75.A.V7.8
			Ø100	M16	150				9.75.A.V7.7
			Ø100	M16	110				9.75.A.V7.6
			Ø100	M16	60				9.75.A.V7.5
			Ø100	M12	100				9.75.A.V7.4
			Ø100	M12	50				9.75.A.V7.3
			Ø100	M10	100				9.75.A.V7.2
			Ø100	M10	50				9.75.A.V7.1

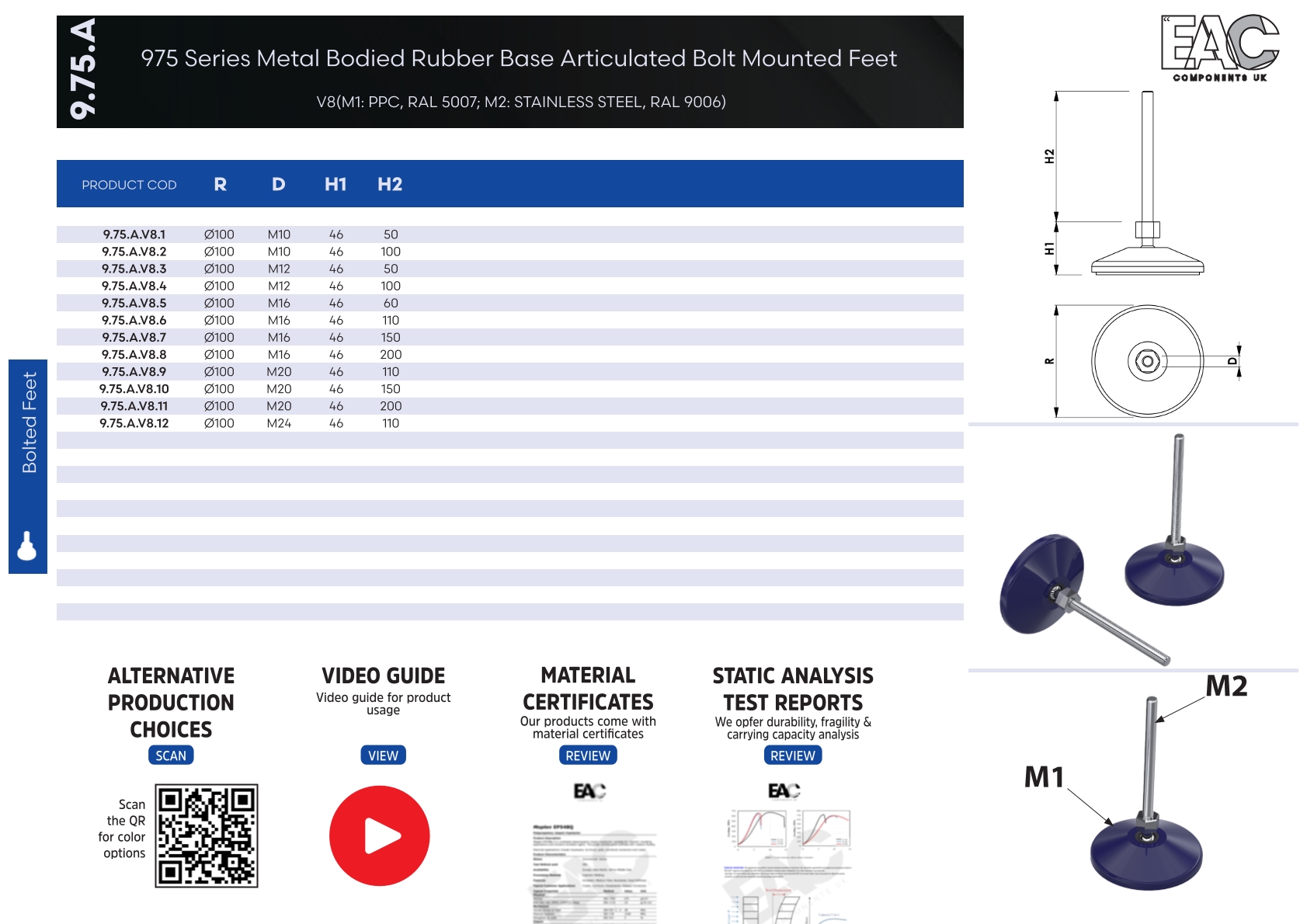

9.75.A.V8 - PPC - RAL 5007
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M24	110				9.75.A.V8.12
			Ø100	M20	200				9.75.A.V8.11
			Ø100	M20	150				9.75.A.V8.10
			Ø100	M20	110				9.75.A.V8.9
			Ø100	M16	200				9.75.A.V8.8
			Ø100	M16	150				9.75.A.V8.7
			Ø100	M16	110				9.75.A.V8.6
			Ø100	M16	60				9.75.A.V8.5
			Ø100	M12	100				9.75.A.V8.4
			Ø100	M12	50				9.75.A.V8.3
			Ø100	M10	100				9.75.A.V8.2
			Ø100	M10	50				9.75.A.V8.1

9.75.A.V9 - PPC - RAL 7016
			Product Diameter (Ø)	Bolt Metric (D)	Bolt Length (H)
			Ø100	M24	110				9.75.A.V9.12
			Ø100	M20	200				9.75.A.V9.11
			Ø100	M20	150				9.75.A.V9.10
			Ø100	M20	110				9.75.A.V9.9
			Ø100	M16	200				9.75.A.V9.8
			Ø100	M16	150				9.75.A.V9.7
			Ø100	M16	110				9.75.A.V9.6
			Ø100	M16	60				9.75.A.V9.5
			Ø100	M12	100				9.75.A.V9.4
			Ø100	M12	50				9.75.A.V9.3
			Ø100	M10	100				9.75.A.V9.2
			Ø100	M10	50				9.75.A.V9.1

Teknik Çizim

Teknik Çizim

3D Modelleme

3D Modelleme

Ürün dosyasına erişmek için aşağıda bulunan “3D Modeli İndir” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Montaj Videosu

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Teknik Detay

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Ürün Hammadde Sertifikası

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Ürün Kalite ve Analiz Belgeleri

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.

Kategori Tanıtımı

Ürün dosyasına erişmek için aşağıda bulunan “Talep Et” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.
