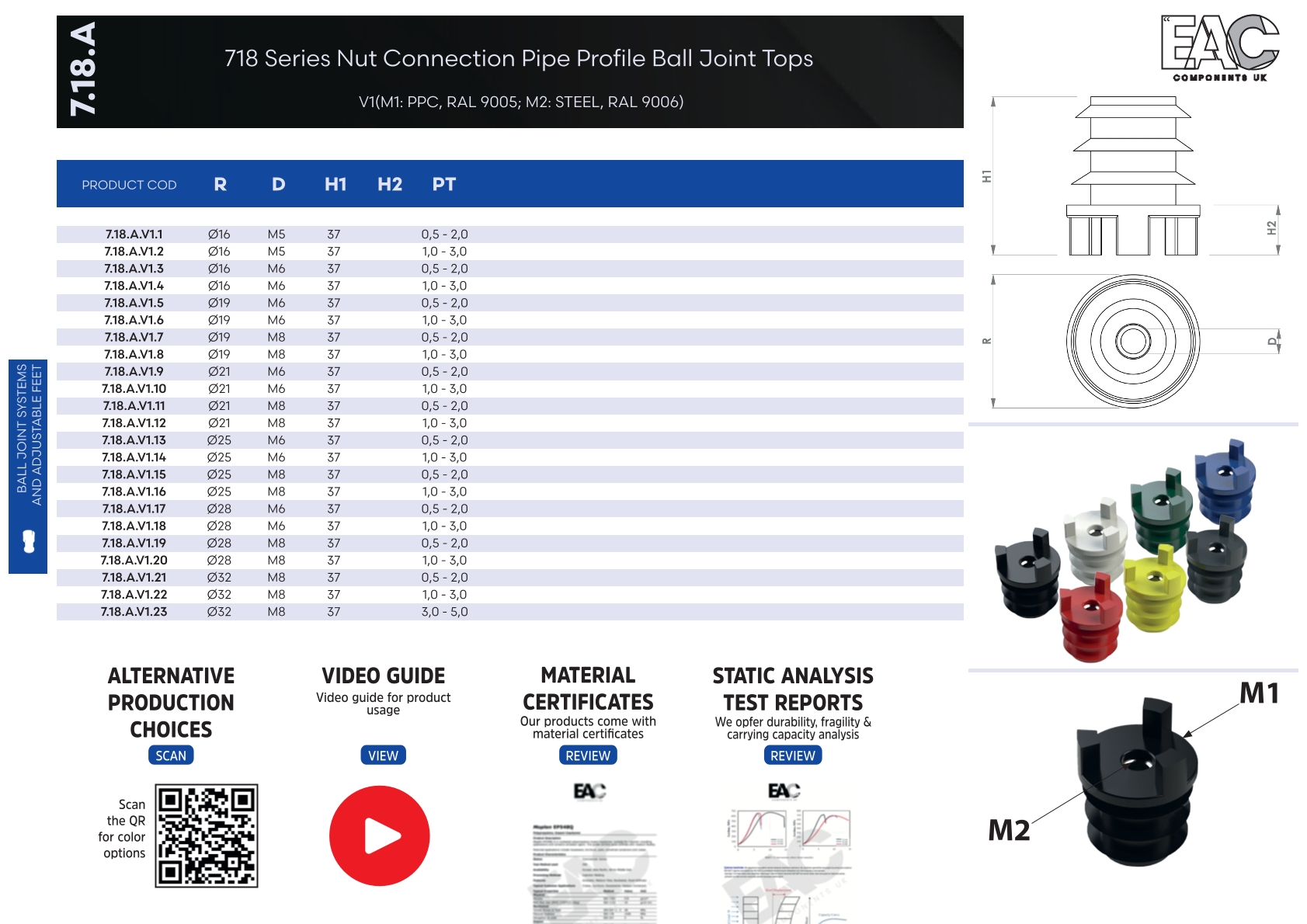

718 Series Nut Connection Pipe Profile Ball Joint Tops

Ürünlerimizin ölçülendirme ve E-Katalog sayfası, ürün malzeme içerikleri, kalite ve analiz dokümanları, sertifikalar, montaj videoları ve kategori tanıtımları hakkında kapsamlı bilgilere kolayca ulaşabilirsiniz.

Katalog Kodu: 7.18

Canlı Destek

Ürün Hammadde Sertifikası

Teknik Detay

Ürün Kalite ve Analiz Belgeleri

Teknik Çizim

Montaj Videosu

Kategori Tanıtımı

3D Modelleme

Renk ve Materyal Seçenekleri (V)

7.18.A.V1 PPC RAL 9005


Dimension (Ø)	Bush Metric (D)	Profile Thickness (PT)
Ø16	M5	0,5 - 2,0	7.18.A.V1.1
Ø16	M5	1,0 - 3,0	7.18.A.V1.2
Ø16	M6	0,5 - 2,0	7.18.A.V1.3
Ø16	M6	1,0 - 3,0	7.18.A.V1.4
Ø19	M6	0,5 - 2,0	7.18.A.V1.5
Ø19	M6	1,0 - 3,0	7.18.A.V1.6
Ø19	M8	0,5 - 2,0	7.18.A.V1.7
Ø19	M8	1,0 - 3,0	7.18.A.V1.8
Ø21	M6	0,5 - 2,0	7.18.A.V1.9
Ø21	M6	1,0 - 3,0	7.18.A.V1.10
Ø21	M8	0,5 - 2,0	7.18.A.V1.11
Ø21	M8	1,0 - 3,0	7.18.A.V1.12
Ø25	M6	0,5 - 2,0	7.18.A.V1.13
Ø25	M6	1,0 - 3,0	7.18.A.V1.14
Ø25	M8	0,5 - 2,0	7.18.A.V1.15
Ø25	M8	1,0 - 3,0	7.18.A.V1.16
Ø28	M6	0,5 - 2,0	7.18.A.V1.17
Ø28	M6	1,0 - 3,0	7.18.A.V1.18
Ø28	M8	0,5 - 2,0	7.18.A.V1.19
Ø28	M8	1,0 - 3,0	7.18.A.V1.20
Ø32	M8	0,5 - 2,0	7.18.A.V1.21
Ø32	M8	1,0 - 3,0	7.18.A.V1.22
Ø32	M8	3,0 - 5,0	7.18.A.V1.23
Ø32	M10	0,5 - 2,0	7.18.A.V1.24
Ø32	M10	1,0 - 3,0	7.18.A.V1.25
Ø32	M10	3,0 - 5,0	7.18.A.V1.26
Ø38	M8	1,0 - 3,0	7.18.A.V1.27
Ø38	M8	3,0 - 5,0	7.18.A.V1.28
Ø38	M10	1,0 - 3,0	7.18.A.V1.29
Ø38	M10	3,0 - 5,0	7.18.A.V1.30
Ø42	M8	1,0 - 3,0	7.18.A.V1.31
Ø42	M8	3,0 - 5,0	7.18.A.V1.32
Ø42	M10	1,0 - 3,0	7.18.A.V1.33
Ø42	M10	3,0 - 5,0	7.18.A.V1.34
Ø45	M8	1,0 - 3,0	7.18.A.V1.35
Ø45	M8	3,0 - 5,0	7.18.A.V1.36
Ø45	M10	1,0 - 3,0	7.18.A.V1.37
Ø45	M10	3,0 - 5,0	7.18.A.V1.38
Ø48	M8	1,0 - 3,0	7.18.A.V1.39
Ø48	M8	3,0 - 5,0	7.18.A.V1.40
Ø48	M10	1,0 - 3,0	7.18.A.V1.41
Ø48	M10	3,0 - 5,0	7.18.A.V1.42
Ø51	M8	1,0 - 3,0	7.18.A.V1.43
Ø51	M8	3,0 - 5,0	7.18.A.V1.44
Ø51	M10	1,0 - 3,0	7.18.A.V1.45
Ø51	M10	3,0 - 5,0	7.18.A.V1.46
Ø60	M10	1,0 - 3,0	7.18.A.V1.47
Ø60	M10	3,0 - 5,0	7.18.A.V1.48
Ø60	M12	1,0 - 3,0	7.18.A.V1.49
Ø60	M12	3,0 - 5,0	7.18.A.V1.50
Ø76	M10	1,0 - 3,0	7.18.A.V1.51
Ø76	M10	3,0 - 5,0	7.18.A.V1.52
Ø76	M12	1,0 - 3,0	7.18.A.V1.53
Ø76	M12	3,0 - 5,0	7.18.A.V1.54
Ø90	M10	1,0 - 3,0	7.18.A.V1.55
Ø90	M12	3,0 - 5,0	7.18.A.V1.56
Ø90	M12	1,0 - 3,0	7.18.A.V1.57
Ø90	M12	3,0 - 5,0	7.18.A.V1.58

3D Modelleme

Ürün dosyasına erişmek için aşağıda bulunan “3D Modeli İndir” butonuna tıklayıp açılan formu doldurup gönderebilirsiniz.
